Technical specifications

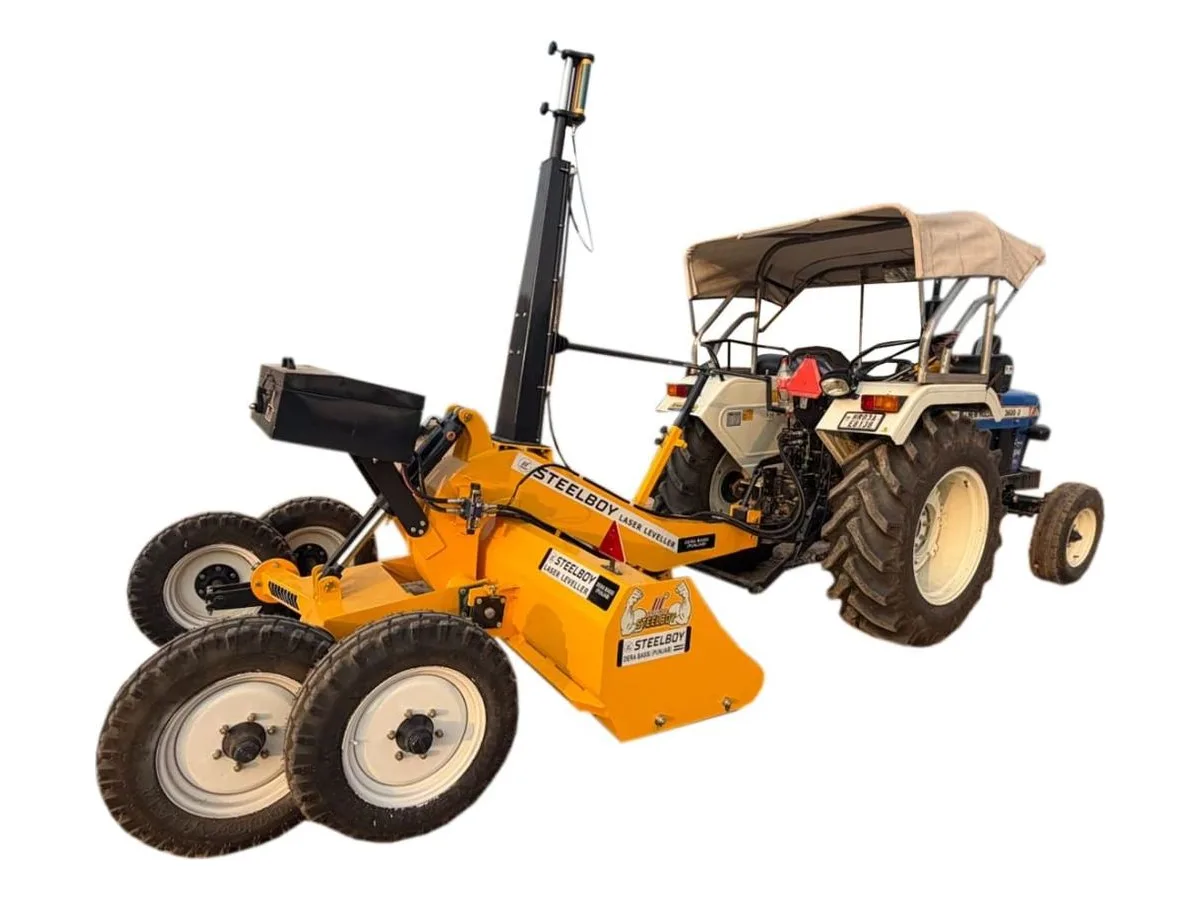

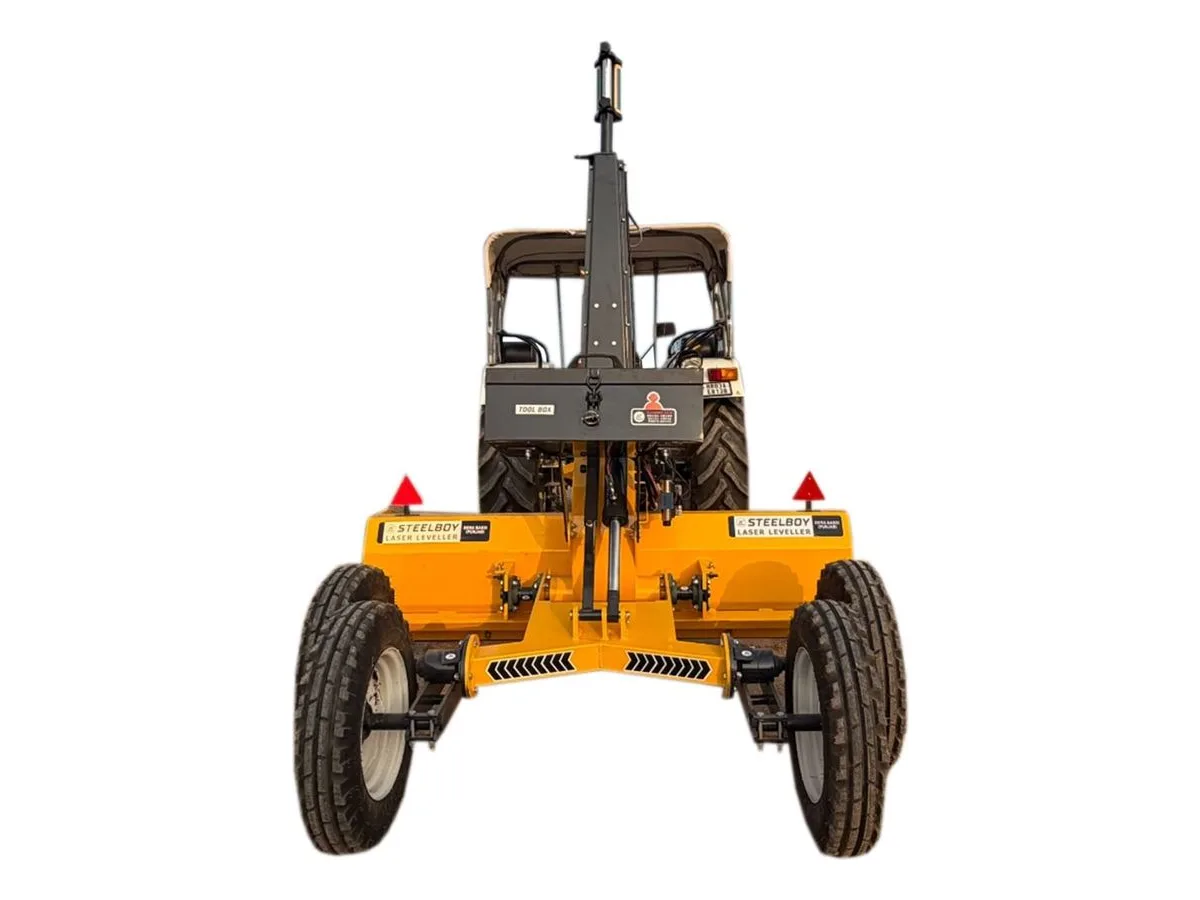

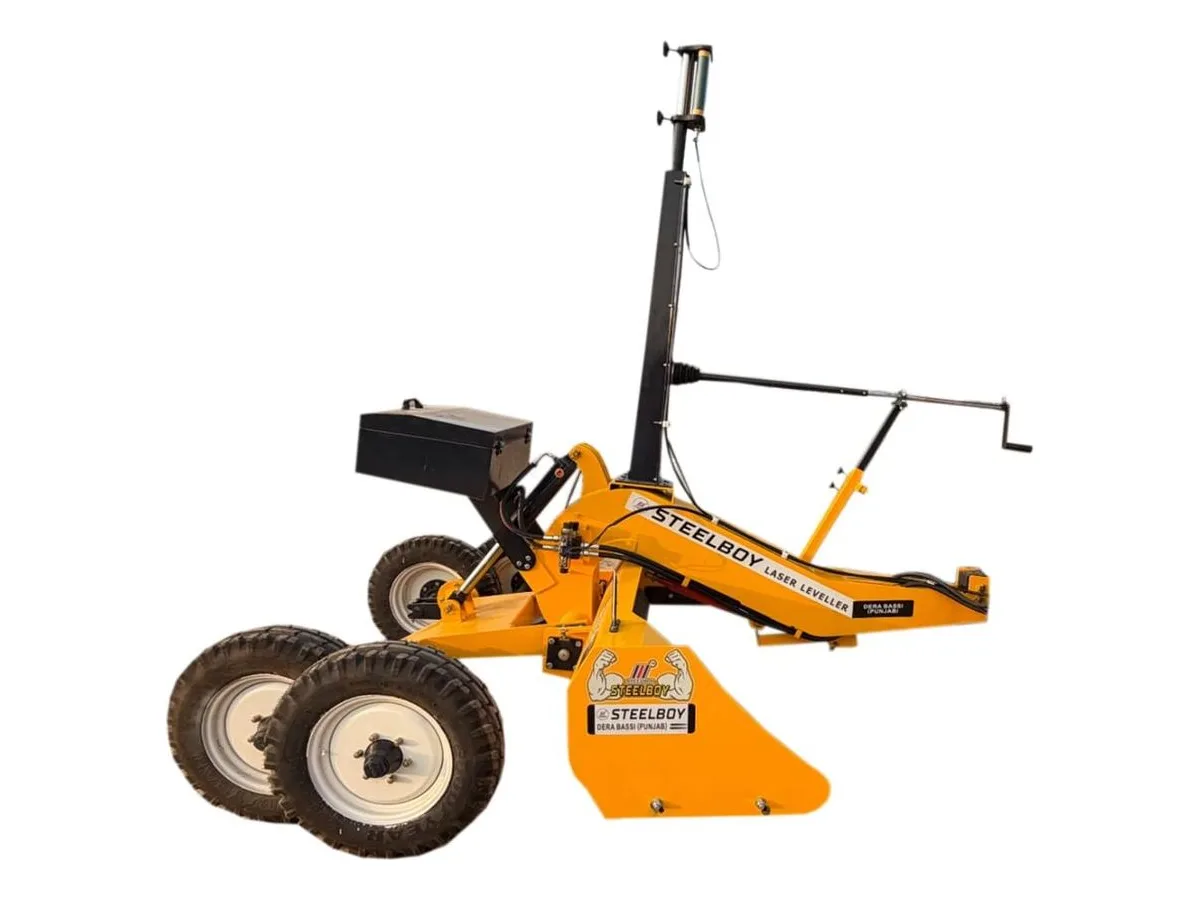

Precision grading, maximum efficiency. The Steelboy Laser Land Leveller works with the USA-made Alpha XD rotary laser — long range and accurate, with single and double slope features. Hydraulic extend system, high-quality hydraulic jack and 4 heavy wheels. Perfect for agricultural use.
Leveller bucket
| Working width |
7, 8, 9 ft |
| Extend system |
7→9 · 8→10 · 9→11 · 10→12 ft |
| Side plate |
10 mm |
| Scraping blade |
125 × 12 mm |
| Hydraulic cylinder |
2 ton |
| Bucket height |
645 mm |
| Bucket width |
2134 mm |
| Weight |
800 kg (approx) |
Transmitter — Alpha XD (USA)
| Operating range |
1300 m diameter |
| Accuracy |
±10 arc sec (1.5 mm @ 30 m) |
| Technology |
Servo motor |
| Self-levelling range |
±5° |
| Slope |
Single axis, X self-level, 8% |
| Height alert |
Active, can be disabled |
| Rotation |
360°, 600 / 1200 rpm |
| Machine control |
Yes |
| Power |
4 × C Alkaline / NiMH |
| Run time |
115 h Alk / 65 h NiMH |
| Auto shut-off |
12 min out of level |
| Environmental |
IP65 |
| Laser class |
CDRH IIIa / IEC 3R |
Receiver — MEI 367 SB
| Voltage |
12 VDC ±20% |
| Max current |
500 mA |
| Laser |
All rotating lasers (HeNe / IR) |
| Water resistance |
IP68 |
| Display |
10 pulses / second |
| Protection |
Reverse polarity |
| Comms / pins |
Wired to control box · 4-pin |
Control panel — Pro-Box
| Voltage |
12 VDC ±20% |
| Accuracy |
±2 mm (std. dev.) |
| Hydraulic output |
Directional valve (01) |
| Water resistance |
IP65 |
| Mode |
Auto / Manual |
| Blade control |
3 functions |
| Out of range |
Indicator |
All specifications are subject to change without prior notice. Weights approximate, without PTO shaft.
