Steelboy Hydraulic Reversible Plough
Steelboy Hydraulic Reversible Plough
Hydraulic Reversible Plough

Hydraulic Reversible Plough (Gujarat Model)

3 models · 25 inch working width · Hydraulic 180° reversal

  • Hydraulic 180° reversal at the end of each run
  • Full soil inversion — buries weeds and residue
  • No dead furrows, level fields
  • 8–10 mm mould boards, 11 mm shares
  • Three frame sizes: 100×25, 110×32, 125×32 mm
Enquiry Now +91 70872 04143
  • ISO 9001:2015 certified
  • Made in Punjab
  • Pan-India dealer support

Technical specifications

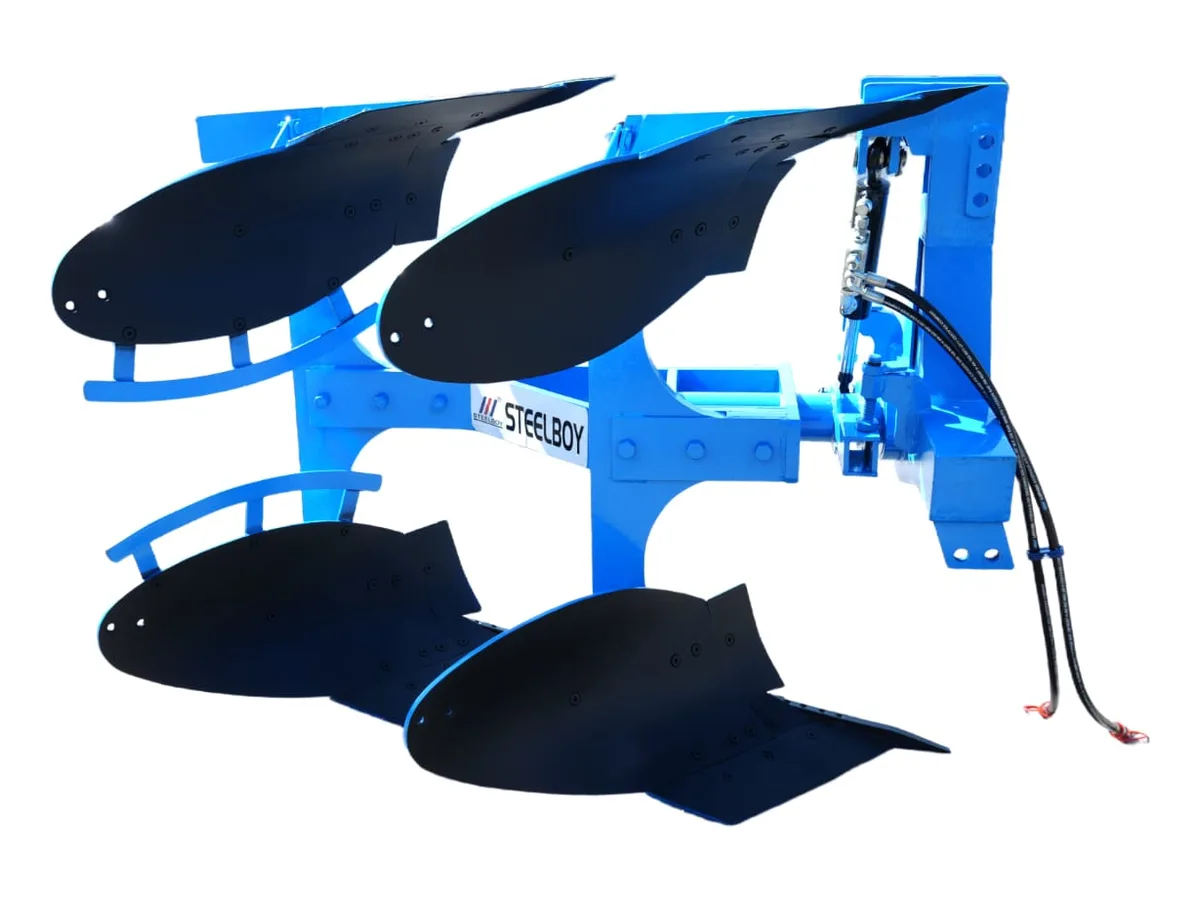

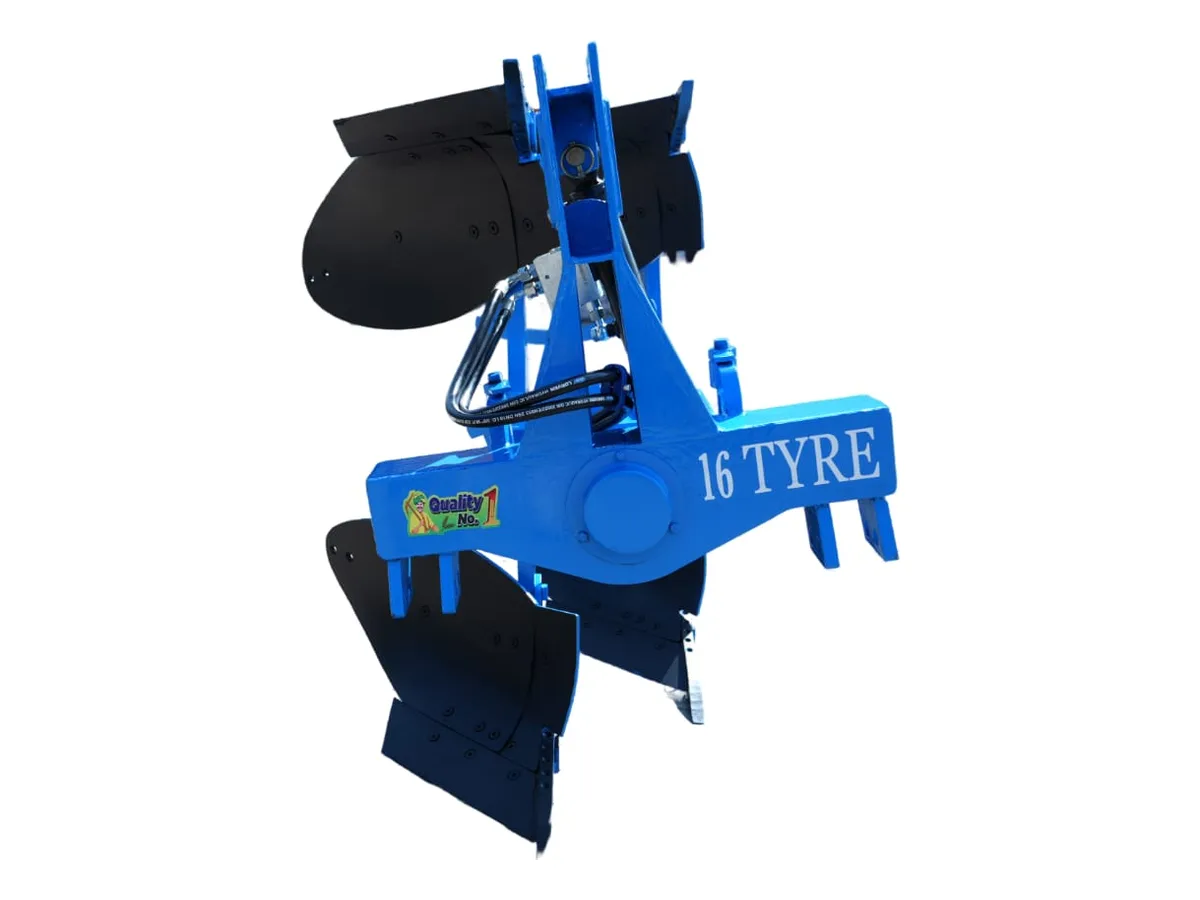

A two-way mouldboard plough that flips hydraulically 180° at the end of each run, so every furrow is turned the same way — level fields, no dead furrows and faster work. Blue powder-coated, “16 TYRE” marking on the front beam.

Specifications
Specification Model 1 Model 2 Model 3
Overall height 51–55 inch 51–55 inch 51–55 inch
Main frame 100 × 25 mm 110 × 32 mm 125 × 32 mm
Working width 25 inch 25 inch 25 inch
Mould board thickness 8 mm 8 mm 10 mm
Tines shape Round Round Round
Tines thickness 32 mm 32 mm 35 mm
Distance between two tines 10 inch 10 inch 11 inch
Share thickness 11 mm 11 mm 11 mm
Working depth 25 inch 25 inch 25 inch
Shaft thickness 90 mm 100 mm 100 mm
Shaft length 600 mm 600 mm 600 mm
Bearing size 33017 33019 33019
Weight (approx) 420 kg 450 kg 500 kg

All specifications are subject to change without prior notice. Weights approximate, without PTO shaft.

Features

  • Hydraulic 180° reversal
  • Two-way mouldboard design
  • No dead furrows — level fields
  • Full soil inversion buries weeds and residue
  • Heavy main frame and shaft
  • Blue powder-coated finish
